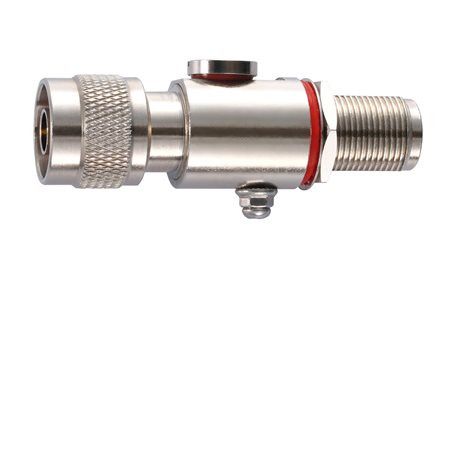

0 to 6 GHz, N-type (male) to N-type (female) surge arrester Physical Characteristics Frequency 0 to 6 GHz V.S.W.R. 1:1.5 @ 0-6 GHz Insertion Loss 0.5 dB (max.) DC Breakdown Voltage 230 V ± 20% @ 100 V/S Impulse Breakdown...

0 to 6 GHz, N-type (female) to N-type (female) surge arrester Physical Characteristics Frequency 0 to 6 GHz V.S.W.R. <1.5 Insertion Loss 0.5 dB (max.) DC Breakdown Voltage 230 V ± 20% @ 100 V/S Impulse Breakdown...

16 dBi at 5 GHz, N-type (female), single-band directional antenna Antenna Characteristics Frequency 5.15 to 5.85 GHz Antenna Type Directional, Panel Typical Antenna Gain 16 dBi Connector N-type (female) Impedance 50 ohms ...

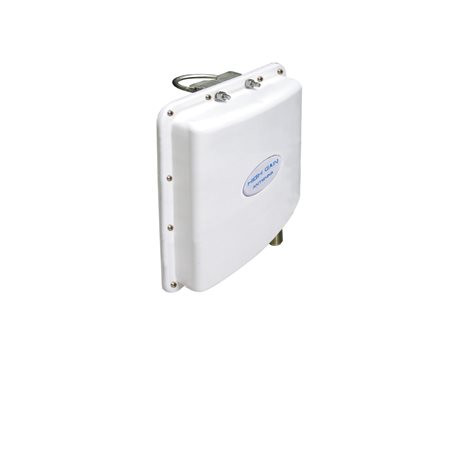

12 dBi at 2.4 GHz, N-type (female), single-band directional antenna Antenna Characteristics Frequency 2.4 to 2.4835 GHz Antenna Type Directional, Panel Typical Antenna Gain 12 dBi Connector N-type (female) Impedance 50 ohms ...

10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna Antenna Characteristics Frequency 2.4 to 2.4835, 5.15 to 5.85 GHz Antenna Type Directional, Panel Typical Antenna Gain 10/11 dBi Connector N-type...

07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (male), dual-band omnidirectional antenna Antenna Characteristics Frequency 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz Antenna Type Omni-directional Typical Antenna Gain 7/7 dBi Impedance 50...

07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna Antenna Characteristics Frequency 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz Antenna Type Omni-directional Typical Antenna Gain 7/9 dBi Connector ...

Power cord with United States (US) plug, 1.83 m Power Parameters Input Plug Type US Input Voltage 125 VAC Max. Current 10A Physical Characteristics Thickness 6.7±0.2 mm (0.25±0.01 in) Length 1830±30...

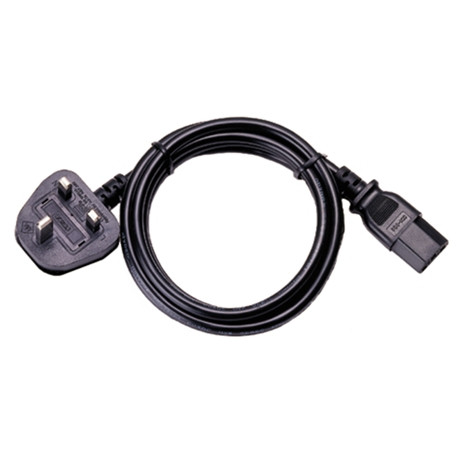

Power cord with United Kingdom (UK) plug, 1.83 m Power Parameters Input Plug Type UK Input Voltage 250 VAC Max. Current 10A Physical Characteristics Thickness 6.7±0.2 mm (0.25±0.01 in) Length 1830±30...

Power cord with Continental Europe (EU) plug, 1.83 m Power Parameters Input Plug Type EU Input Voltage 250 VAC Max. Current 10A Physical Characteristics Thickness 6.7±0.2 mm (0.25±0.01 in) Length ...

Wall mounting kit with 2 plates (55 x 34.5 x 2.5 mm) and 6 screws Physical Characteristics Dimensions 55 x 34 x 2.5 mm (2.16 x 1.34 x 0.10 in)

Wall mounting kit with 2 plates (51.6 x 67 x 2 mm) and 6 screws Physical Characteristics Dimensions 51.6 x 67 x 2 mm (2.03 x 2.63 x 0.07 in)

Wall Mounting Kit

Wall Mounting Kit

Rack Mount Kit with 2 pcs of L-shape plates, 8 screws Physical Characteristics Dimensions 45 x 57 x 2.5 mm (1.77 x 2.24 x 0.10 in)Related Products:NPort 5600-8 Series, NPort 5600-16 Series, NPort 5650-8-HV-T, NPort 5650-16-HV-T, CN2600-8 Series,...

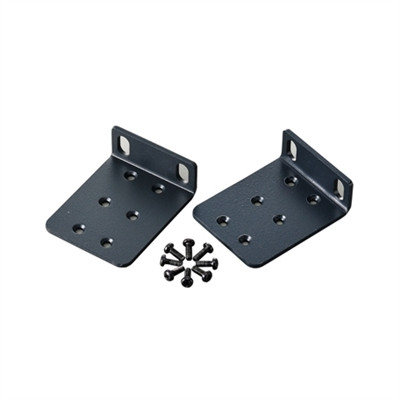

Rack-mounting kit, 2 L-shaped plates, 8 screws, 44 x 57.5 x 1.6 mm Physical Characteristics Dimensions 44 x 57.5 x 1.6 mm (1.73 x 2.26 x 0.06 in)Related Products:NPort 6600-8 Series, NPort 6600-16 Series, NPort 6600-32 Series, UPort 1600-16 Series
