Description

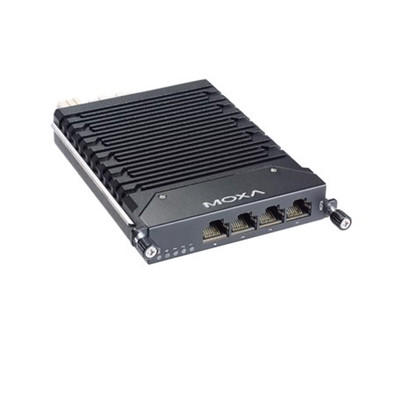

Fast Ethernet interface module with 4 10/100BaseT(X) ports, 0 to 60°C operating temperature
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
- 4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
- 4
LED Interface
-
LED Indicators
- PWR, P1, P2, P3, P4 port status
Power Parameters
-
Power Consumption
- 1.29 W (max.)
Physical Characteristics
-
Housing
- IP30
-
Dimensions
- 40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in)
-
Weight
- 215 g (0.48 lb)
MTBF
-
Standards
- Telcordia (Bellcore), GB
Warranty
5 years
