Backorder

MD-224Z-HB

Write a Review
$3,269.00
SKU:
2247
Weight:
21.10 LBS
Current Stock:
Add to Quote

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

24-inch display, 1000-nit LCD with multi-touch, VGA/DVI-D input, -15 to 55°C operating temperature, dual AC/DC power inputs, IP66 in front

Display

  • Aspect Ratio

    • 16:9

  • Contrast Ratio

    • 5,000:1

  • Max. No. of Colors

    • 16.7M (8-bit/color)

  • Panel Size

    • 24-inch viewable image

  • Panel Type

    • MVA

  • Pixels

    • 1920 x 1080

  • Response Time

    • 25 ms (gray to gray)

  • Viewing Angles

    • 178°/178°

  • Light Intensity (Brightness)

    • 1000 cd/m2
Computer Interface

  • Serial Ports

    • RS-232 ports x 1 (DB9 male)
      RS-232/422/485 ports x 1, software-selectable (terminal block)

  • Video Input

    • DVI-D x 1, 29-pin DVI-D connectors (female)
      VGA x 1, 15-pin D-sub connector (female)
Touch Function

  • Touch Type

    • Capacitive Touch (PCAP)

  • Touch Support Points

    • 4 points
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters

  • Input Voltage

    • 100 to 240 VAC, 24 VDC (18 to 30 V)

  • Power Consumption

    • 40 W (max.)
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP66, front
      IP22, rear

  • Dimensions

    • 595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)

  • Weight

    • 9,570 g (21.10 lb)

  • Installation

    • Desktop, Panel mounting, VESA mounting
Environmental Limits

  • Operating Temperature

    • -15 to 55°C (5 to 131°F)

  • Storage Temperature (package included)

    • -20 to 60°C (-4 to 140°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 1k V

  • Maritime

    • ABS, CCS, DNV-GL, IEC 60945

  • Safety

    • UL 60950-1

Warranty

LCD: 1 year; System: 3 years

Customer Reviews

Related Products

Moxa MD-224Z 24-Inch Industrial Display
Moxa

MD-224Z

$2,738.00
24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC) Display Aspect Ratio
Contact us for lead time
Moxa MD-219Z-HB 19-inch display, 1000-nit LCD with multi-touch
Moxa

MD-219Z-HB

$2,831.25
19-inch display, 1000-nit LCD with multi-touch, VGA/DVI-D input, -15 to 55°C operating temperature, dual AC/DC power inputs, IP66 in front Display Aspect Ratio 5:4
Contact us for lead time
Moxa MD-219X 19-Inch Industrial Display
Moxa

MD-219X

$2,055.75
19-inch, 5:4 aspect ratio display (1280x1024), LED backlight, DVI-D/VGA, RS-232 & RS-422/485 serial ports, AC/DC dual power Display Aspect Ratio 5:4
Contact us for lead time

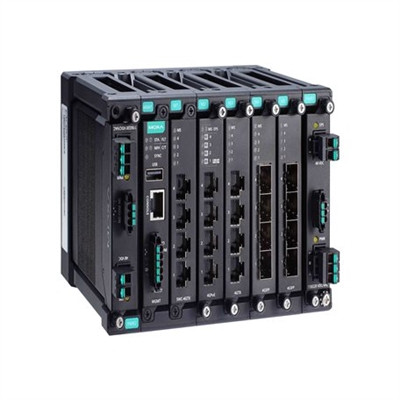

Moxa MDS-G4020 Layer 2 full Gigabit modular managed Ethernet switch
