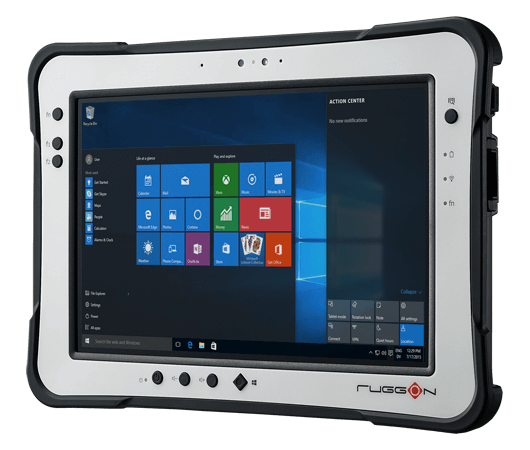

10.1” Fully Rugged Tablet
With the ideal combination of extreme power and extensibility, the PX-501 takes your experience to new heights.
- IP65, MIL-STD-810G, 5 feet drop resistance
- 1000 nits sunlight readable display
- GNSS, Wi-Fi, Bluetooth and optional 4G LTE
- Capacitive touch supports digitizer, glove touch, water rejection, palm rejection, 2mm hard tip stylus
- Hot swappable battery design
- Wide expansion design for data capture
- Dual pass-through connector for WLAN, GNSS, WWAN
- Navis Ready
| System | - Inte l® Core™ i5-5350U 1.8GHz vPro™
- 8GB DDR3L
- 128GB mSATA SSD, expandable to 256GB
- OS supports Windows 10
|
| Durability | - IP65, MIL-STD-810G certified
- Vibration, shock and 5’ drop resistance
- Operating temperature : -20° C to +60° C
|
| Display | - 10.1" TFT LCD WUXGA (1920 x 1200), 1000 nits sunlight readable
- 10-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
- Gorilla Glass; digitizer by request
|
| I/O Interface | - USB 3.0 type A x 1
- RS-232 x 1
- Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1
- Headphone / microphone combo x 1
- RF pass-through connector for WLAN, GNSS, WWAN x 2
- Docking connector x 1
- DC-in x 1
|
| Expansion Options | - Built-in 2D barcode reader
- NFC + Smart Card reader (CAC) 2-in-1 module
- Fingerprint reader, UHF RFID reader
- Snap-on connector easy for customization
|
| Communications | - Gigabit Ethernet(RJ45 )
- 802.11 a/b/g/n/ac
- Bluetooth V4.0 + EDR
- GNSS (GPS/ GLONASS/ BeiDou)
- Optional 4G LTE
|
| Camera | - 2MP front camera
- 8MP auto focus rear camera with LED flash
|
| Power | - AC adapter (65W, 100-240V AC, 50/60Hz)
- 4500mAh hot swappable battery, 6 hours battery life
- Optional 9000mAh hot swappable battery, up to 13 hours battery life
* The listed battery life is based on MobileMark 2012® media mode testing. |
| Security | - TPM2.0
- Phoenix SecureWipe by request
|
