Description

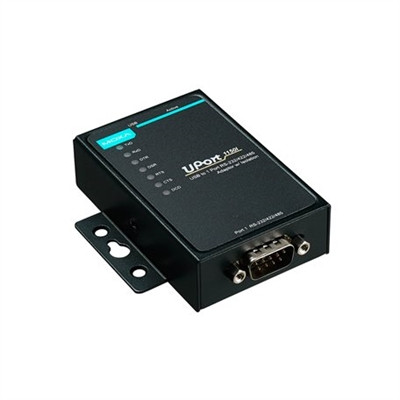

1-port RS-232/422/485 USB-to-serial converter with optical isolation protection
USB Interface
-
Speed
- 12 Mbps
-
USB Connector
- USB Type B
-
USB Standards
- USB 1.1/2.0 compliant
Serial Interface
-
No. of Ports
- 1
-
Connector
- DB9 male
-
Baudrate
- 50 bps to 921.6 kbps
-
Data Bits
- 5, 6, 7, 8
-
Stop Bits
- 1, 1.5, 2
-
Parity
- None, Even, Odd, Space, Mark
-
Flow Control
- None, RTS/CTS, XON/XOFF
-
Isolation
- 2 kV (I models)
-
Serial Standards
- RS-232, RS-422, RS-485
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
-
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
-
RS-485-2w
- Data+, Data-, GND
Power Parameters
-
Input Voltage
- 5 VDC
-
Input Current
- 260 mA @ 5 VDC
Physical Characteristics
-
Housing
- Metal
-
Dimensions
- 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
-
Weight
- Packaged: 320 g (0.71 lb)
Product only: 75 g (0.17 lb)
- Packaged: 320 g (0.71 lb)
Environmental Limits
-
Operating Temperature
- 0 to 55°C (32 to 131°F)
-
Storage Temperature (package included)
- -20 to 70°C (-4 to 158°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
- EN 55032/24
-
EMI
- CISPR 32, FCC Part 15B Class 1
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
Declaration
-
Green Product
- RoHS, CRoHS, WEEE
MTBF
-
Time
- 1,949,025 hrs
-
Standards
- Telcordia (Bellcore), GB
Warranty
5 years
